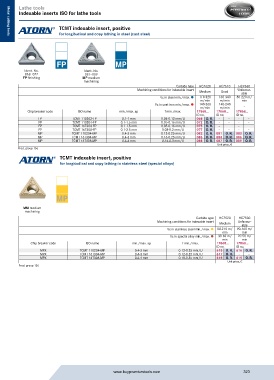

Page 323 - Buy Premium Tools ATORN Catalogue

Lathe tools
Indexable inserts ISO for lathe tools

TCMT indexable insert, positive
for longitudinal and copy lathing in steel (cast steel)
Metal cutting tools
Metal cutting tools

FP MP
Ident. No. Ident. No.
068–077 081–089
FP finishing MP medium
machining
Carbide type HC7620 HC7610 HC7630
Machining conditions for indexable insert Medium Good Unfavour-
able
Vc in steel min./max. ˜ 110-320 160-340 80-220 m/
m/min m/min min
Vc in cast iron min./max. ˜ 140-260 140-240 -
m/min m/min
Chip breaker code ISO name min./max. ap f min./max. 17868... 17868... 17868...
ID no. ID no. ID no.
FP TCMT 110202-FP 0.1-1 mm 0.04-0.12 mm/U 068 O. R. - - - -
FP TCMT 110204-FP 0.1-1.5 mm 0.05-0.16 mm/U 072 O. R. - - - -
FP TCMT 16T304-FP 0.1-1.5 mm 0.05-0.16 mm/U 075 O. R. - - - -
FP TCMT 16T308-FP 0.1-2.5 mm 0.08-0.2 mm/U 077 O. R. - - - -
MP TCMT 110204-MP 0.4-3 mm 0.12-0.25 mm/U 082 O. R. 081 O. R. 083 O. R.
MP TCMT 16T304-MP 0.4-3 mm 0.16-0.25 mm/U 085 O. R. 084 O. R. 086 O. R.
MP TCMT 16T308-MP 0.6-4 mm 0.16-0.3 mm/U 088 O. R. 087 O. R. 089 O. R.
Unit price, €
Prod. group 156
TCMT indexable insert, positive
for longitudinal and copy lathing in stainless steel (special alloys)

MP

MM medium
machining
Carbide type HC7520 HC7530
Machining conditions for indexable insert Medium Unfavour-
able
Vc in stainless steel min./max. ˜ 80-210 m/ 90-160 m/
min min
Vc in special alloy min./max. ˜ 30-60 m/ 20-50 m/
min min
Chip breaker code ISO name min./max. ap f min./max. 17868... 17868...
ID no. ID no.
MPX TCMT 110204-MP 0.4-3 mm 0.12-0.25 mm/U 615 O. R. 616 O. R.
MPX TCMT 16T304-MP 0.4-3 mm 0.12-0.25 mm/U 617 O. R. - -
MPX TCMT 16T308-MP 0.6-4 mm 0.18-0.35 mm/U 618 O. R. 619 O. R.
Unit price, €
Prod. group 156
