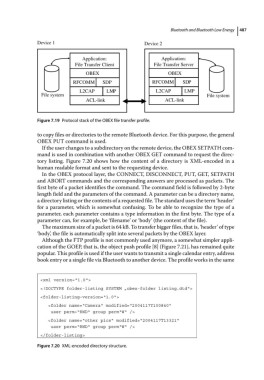

Bluetooth and Bluetooth Low Energy  487

               Device 1                               Device 2


                               Application:                 Application:
                            File Transfer Client         File Transfer Server
                                OBEX                          OBEX
                            RFCOMM    SDP                RFCOMM     SDP
                              L2CAP     LMP               L2CAP     LMP
                File system                                                  File system
                                ACL-link                     ACL-link



               Figure 7.19  Protocol stack of the OBEX file transfer profile.

               to copy files or directories to the remote Bluetooth device. For this purpose, the general
               OBEX PUT command is used.
                If the user changes to a subdirectory on the remote device, the OBEX SETPATH com-
               mand is used in combination with another OBEX GET command to request the direc-
               tory listing. Figure 7.20 shows how the content of a directory is XML‐encoded in a
               human readable format and sent to the requesting device.
                In the OBEX protocol layer, the CONNECT, DISCONNECT, PUT, GET, SETPATH
               and ABORT commands and the corresponding answers are processed as packets. The
               first byte of a packet identifies the command. The command field is followed by 2‐byte
               length field and the parameters of the command. A parameter can be a directory name,
               a directory listing or the contents of a requested file. The standard uses the term ‘header’
               for a parameter, which is somewhat confusing. To be able to recognize the type of a
               parameter, each parameter contains a type information in the first byte. The type of a
               parameter can, for example, be ‘filename’ or ‘body’ (the content of the file).
                The maximum size of a packet is 64 kB. To transfer bigger files, that is, ‘header’ of type
               ‘body’, the file is automatically split into several packets by the OBEX layer.
                Although the FTP profile is not commonly used anymore, a somewhat simpler appli-
               cation of the GOEP, that is, the object push profile [8] (Figure 7.21), has remained quite
               popular. This profile is used if the user wants to transmit a single calendar entry, address
               book entry or a single file via Bluetooth to another device. The profile works in the same



                <xml version=“1.0“>
                <!DOCTYPE folder-listing SYSTEM „obex-folder listing.dtd“>
                <folder-listing-version=“1.0“>
                   <folder name=“Camera“ modified=“2004117T100840“
                    user perm=“RWD“ group perm“W“ />
                   <folder name=“other pics“ modified=“2004117T13321“
                    user perm=“RWD“ group perm“W“ />
                </folder-listing>
               Figure 7.20  XML‐encoded directory structure.
