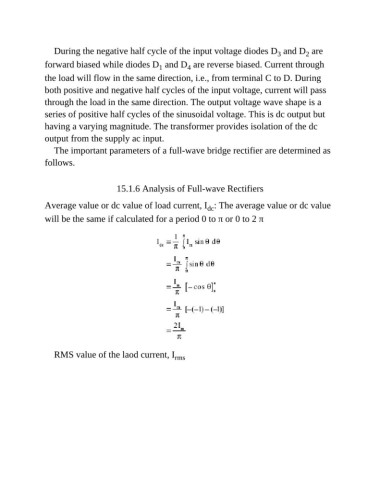

During the negative half cycle of the input voltage diodes D and D are
2
3
forward biased while diodes D and D are reverse biased. Current through
1
4
the load will flow in the same direction, i.e., from terminal C to D. During
both positive and negative half cycles of the input voltage, current will pass
through the load in the same direction. The output voltage wave shape is a
series of positive half cycles of the sinusoidal voltage. This is dc output but

having a varying magnitude. The transformer provides isolation of the dc
output from the supply ac input.

The important parameters of a full-wave bridge rectifier are determined as
follows.

15.1.6 Analysis of Full-wave Rectifiers

Average value or dc value of load current, I : The average value or dc value
dc
will be the same if calculated for a period 0 to π or 0 to 2 π

RMS value of the laod current, I rms
