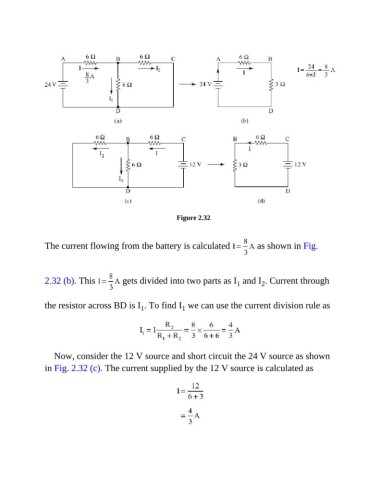

Figure 2.32
The current flowing from the battery is calculated as shown in Fig.
2.32 (b). This gets divided into two parts as I and I . Current through
1
2
the resistor across BD is I . To find I we can use the current division rule as
1
1
Now, consider the 12 V source and short circuit the 24 V source as shown
in Fig. 2.32 (c). The current supplied by the 12 V source is calculated as
