P. 211

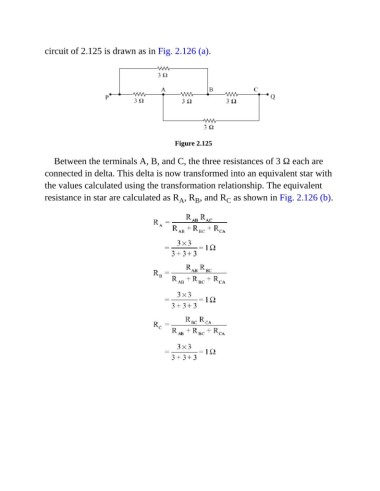

circuit of 2.125 is drawn as in Fig. 2.126 (a).
Figure 2.125
Between the terminals A, B, and C, the three resistances of 3 Ω each are
connected in delta. This delta is now transformed into an equivalent star with
the values calculated using the transformation relationship. The equivalent
resistance in star are calculated as R , R , and R as shown in Fig. 2.126 (b).
C
B
A
