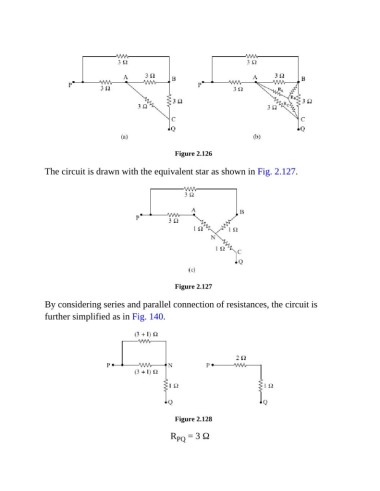

Figure 2.126
The circuit is drawn with the equivalent star as shown in Fig. 2.127.
Figure 2.127
By considering series and parallel connection of resistances, the circuit is
further simplified as in Fig. 140.
Figure 2.128
R = 3 Ω
PQ
