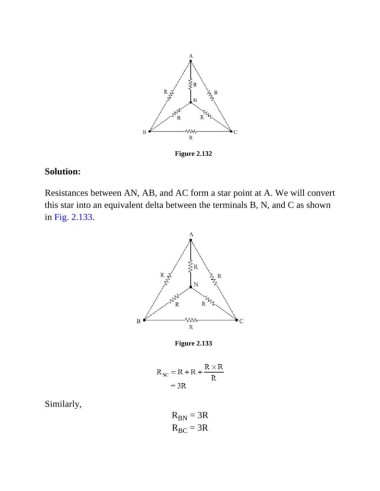

Figure 2.132
Solution:
Resistances between AN, AB, and AC form a star point at A. We will convert
this star into an equivalent delta between the terminals B, N, and C as shown
in Fig. 2.133.
Figure 2.133
Similarly,
R BN = 3R
R = 3R
BC
