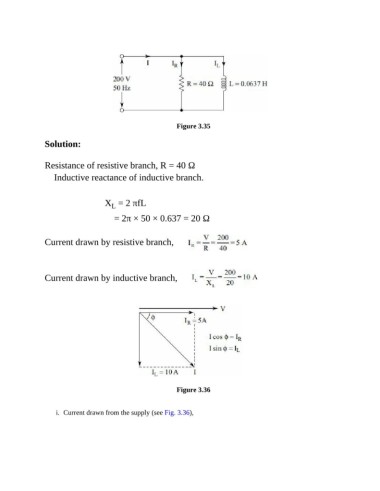

Figure 3.35
Solution:
Resistance of resistive branch, R = 40 Ω
Inductive reactance of inductive branch.
X = 2 πfL
L
= 2π × 50 × 0.637 = 20 Ω
Current drawn by resistive branch,
Current drawn by inductive branch,
Figure 3.36
i. Current drawn from the supply (see Fig. 3.36),
