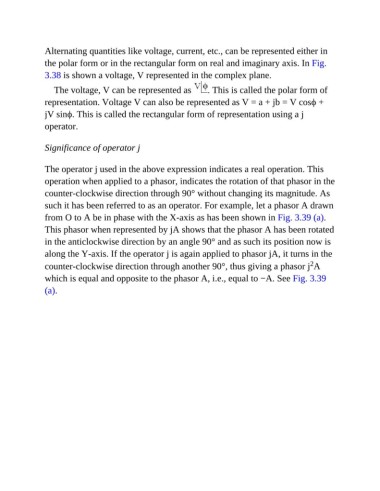

Alternating quantities like voltage, current, etc., can be represented either in
the polar form or in the rectangular form on real and imaginary axis. In Fig.
3.38 is shown a voltage, V represented in the complex plane.

The voltage, V can be represented as . This is called the polar form of
representation. Voltage V can also be represented as V = a + jb = V cosϕ +
jV sinϕ. This is called the rectangular form of representation using a j

operator.

Significance of operator j

The operator j used in the above expression indicates a real operation. This

operation when applied to a phasor, indicates the rotation of that phasor in the
counter-clockwise direction through 90° without changing its magnitude. As

such it has been referred to as an operator. For example, let a phasor A drawn
from O to A be in phase with the X-axis as has been shown in Fig. 3.39 (a).

This phasor when represented by jA shows that the phasor A has been rotated
in the anticlockwise direction by an angle 90° and as such its position now is
along the Y-axis. If the operator j is again applied to phasor jA, it turns in the

2
counter-clockwise direction through another 90°, thus giving a phasor j A
which is equal and opposite to the phasor A, i.e., equal to −A. See Fig. 3.39

(a).
