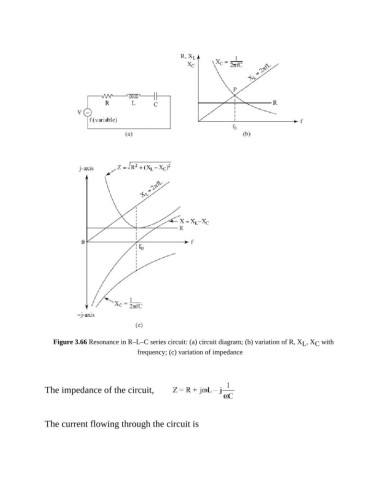

Figure 3.66 Resonance in R–L–C series circuit: (a) circuit diagram; (b) variation of R, X , X with
L
C
frequency; (c) variation of impedance
The impedance of the circuit,
The current flowing through the circuit is
