expressed as

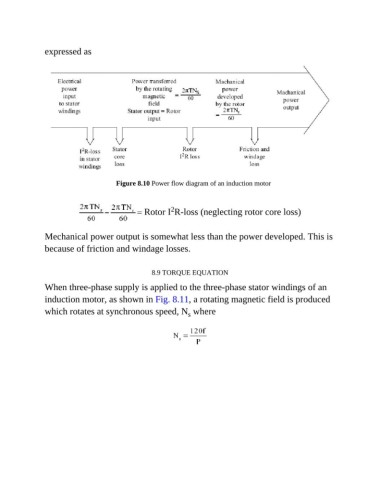

Figure 8.10 Power flow diagram of an induction motor
2
Rotor I R-loss (neglecting rotor core loss)
Mechanical power output is somewhat less than the power developed. This is
because of friction and windage losses.
8.9 TORQUE EQUATION
When three-phase supply is applied to the three-phase stator windings of an
induction motor, as shown in Fig. 8.11, a rotating magnetic field is produced
which rotates at synchronous speed, N where
s
