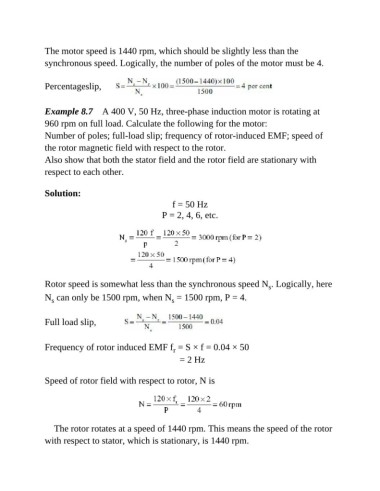

The motor speed is 1440 rpm, which should be slightly less than the
synchronous speed. Logically, the number of poles of the motor must be 4.

Percentageslip,

Example 8.7 A 400 V, 50 Hz, three-phase induction motor is rotating at
960 rpm on full load. Calculate the following for the motor:

Number of poles; full-load slip; frequency of rotor-induced EMF; speed of
the rotor magnetic field with respect to the rotor.

Also show that both the stator field and the rotor field are stationary with
respect to each other.

Solution:
f = 50 Hz

P = 2, 4, 6, etc.

Rotor speed is somewhat less than the synchronous speed N . Logically, here
s
N can only be 1500 rpm, when N = 1500 rpm, P = 4.
s
s

Full load slip,

Frequency of rotor induced EMF f = S × f = 0.04 × 50
r
= 2 Hz

Speed of rotor field with respect to rotor, N is

The rotor rotates at a speed of 1440 rpm. This means the speed of the rotor
with respect to stator, which is stationary, is 1440 rpm.
