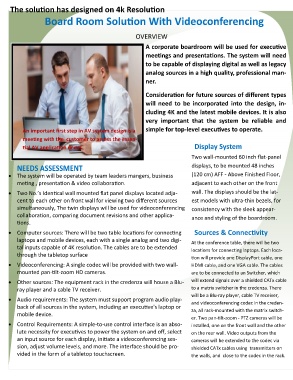

Board Room Solution With Videoconferencing

OVERVIEW
A corporate boardroom will be used for executive

meetings and presentations. The system will need
to be capable of displaying digital as well as legacy
analog sources in a high quality, professional man-
ner.

Consideration for future sources of different types
will need to be incorporated into the design, in-
cluding 4K and the latest mobile devices. It is also

very important that the system be reliable and
An important first step in AV system design is a simple for top-level executives to operate.

meeting with the customer to assess the essen- Why US ?
tial AV application needs. Display System
We are the authorized partner of world known AV organization like Extron, Clearone, Lifesize, Sharp, Sam-
Two wall-mounted 60 inch flat-panel
sung & Crestron, we have decade of experience in AV technology and successful implementation, we have
displays, to be mounted 48 inches
NEEDS ASSESSMENT our in-house team for designing to implementation to after sales onsite services, we know the technology
 The system will be operated by team leaders mangers, business (120 cm) AFF - Above Finished Floor, and their challenges, and always advise our customers for a best buy, we provide all the products and so-
meting , presentation & video collaboration. adjacent to each other on the front
lutions you need for designing AV systems to suit any applications, from basic switching system with a sin-
 Two No.’s Identical wall mounted flat panel displays located adja- wall. The displays should be the lat- gle display, all the way upto large scale AV distribution installations for an entire university or corporate
cent to each other on front wall for viewing two different sources est models with ultra-thin bezels, for campus, we can even provide the means for you to integrate AV between locations around the world.
simultaneously, The twin displays will be used for videoconferencing consistency with the sleek appear-
collaboration, comparing document revisions and other applica-
ance and styling of the boardroom. Switching System Audio System
tions. Control System

 Computer sources: There will be two table locations for connecting Sources & Connectivity A matrix switcher will manage video The Amplifier will facilitate audio An 10 inch TouchLink® touchpanel, or IPAD
laptops and mobile devices, each with a single analog and two digi- and audio source selection and dis- source selection with audio em- situated on the table will serve as the con-
At the conference table, there will be two bedding and de-embedding as
tal inputs capable of 4K resolution. The cables are to be extended tribution. The matrix switcher in- trol interface for the system. A specially de-
locations for connecting laptops. Each loca- needed. 100 watt, 70 volt amplifi-
through the tabletop surface cludes two DTP™ inputs for receiv- er is to power six 16 watts is
tion will provide one DisplayPort cable, one ing signals from the transmitter signed and customized GUI will provide a
 Videoconferencing: A single codec will be provided with two wall- HDMI cable, and one VGA cable. The cables units at the table. The sources and speakers system integrated DSP of simple-to-use and intuitive control inter-
mounted pan-tilt-zoom HD cameras. are to be connected to an Switcher, which codec in the rack will be connected the Cross Point will be used to face for a range of video and audio func-
manage program audio and route
 Other sources: The equipment rack in the credenza will house a Blu- will extend signals over a shielded CATx cable to the matrix switcher's local HDMI audio mixes to the amplifier out- tions, particularly videoconferencing. Sys-
ray player and a cable TV receiver. to a matrix switcher in the credenza. There inputs and outputs. The DTP Cross put. The DSP will also be linked to tem control is to be provided by the control
will be a Blu-ray player, cable TV receiver, Point also features two DTP outputs an Extron DMP 128 C DSP over the
 Audio requirements: The system must support program audio play- DMP digital audio expansion port. processor , which can easily be configured
and videoconferencing codec in the creden- which will be for extending signals
back of all sources in the system, including an executive's laptop or The DMP 128 C will provide addi- to integrate the entire AV system.
za, all rack-mounted with the matrix switch- to the two wall-mounted displays
mobile device. via Extron DTP R HWP 4K 231 D wall tional DSP capabilities, including
er. Two pan-tilt-zoom - PTZ cameras will be AEC - acoustic echo cancellation
 Control Requirements: A simple-to-use control interface is an abso- installed, one on the front wall and the other plate receivers behind each display. and auto mixing for six table mi-
lute necessity for executives to power the system on and off, select on the rear wall. Video outputs from the Two separate sources may be crophones.
an input source for each display, initiate a videoconferencing ses- cameras will be extended to the codec via shown simultaneously on the two
sion, adjust volume levels, and more. The interface should be pro- shielded CATx cables using transmitters on displays.
vided in the form of a tabletop touchscreen. the walls, and close to the codec in the rack.
