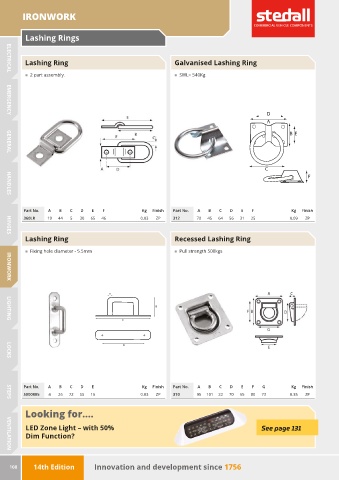

Page 110 - Stedall Parts Catalogue 14th Edition

IRONWORK

Lashing Rings

Lashing Ring Galvanised Lashing Ring

ELECTRICAL
„ 2 part assembly. „ SWL= 540Kg

D
EMERGENCY
A

B E

GENERAL
C
F

HANDLES

Part No. A B C D E F Kg Finish Part No. A B C D E F Kg Finish

360LR 19 44 5 30 65 46 0.03 ZP 312 70 45 64 56 31 25 0.09 ZP

Lashing Ring Recessed Lashing Ring
HINGES

„ Fixing hole diameter - 5.5mm „ Pull strength 500kgs

IRONWORK
A

B

C
LIGHTING

D

LOCKS

Part No. A B C D E Kg Finish Part No. A B C D E F G Kg Finish
5000885 4 26 72 55 16 0.03 ZP 310 95 101 22 70 65 80 73 0.35 ZP
STEPS
Looking for....

LED Zone Light – with 50% See page 131
Dim Function?

VENTILATION

108 14th Edition Innovation and development since 1756
