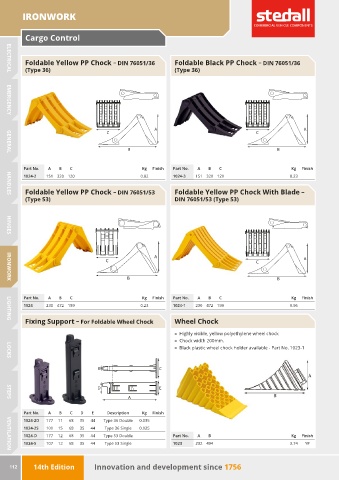

Page 114 - Stedall Parts Catalogue 14th Edition

IRONWORK

Cargo Control

Foldable Yellow PP Chock — DIN 76051/36 Foldable Black PP Chock — DIN 76051/36
(Type 36) (Type 36)
ELECTRICAL

EMERGENCY

A A
C C

B B
GENERAL
Part No. A B C Kg Finish Part No. A B C Kg Finish
1024-2 151 320 120 0.82 1024-3 151 320 120 0.23

Foldable Yellow PP Chock — DIN 76051/53 Foldable Yellow PP Chock With Blade —
HANDLES
(Type 53) DIN 76051/53 (Type 53)

HINGES

A
C C A

B B
IRONWORK

Part No. A B C Kg Finish Part No. A B C Kg Finish
1024 230 472 199 0.23 1024-1 230 472 199 0.96

Fixing Support — For Foldable Wheel Chock Wheel Chock
LIGHTING
„ Highly visible, yellow polyethylene wheel chock
„ Chock width 200mm.
„ Black plastic wheel chock holder available - Part No. 1023-1
LOCKS
B C

D E
A
STEPS

Part No. A B C D E Description Kg Finish
1024-2D 177 11 68 35 44 Type 36 Double 0.035
1024-2S 100 15 68 35 44 Type 36 Single 0.025
1024-D 177 12 68 35 44 Type 53 Double Part No. A B Kg Finish
1024-S 107 12 68 35 44 Type 53 Single 1023 232 494 3.74 YP
VENTILATION
