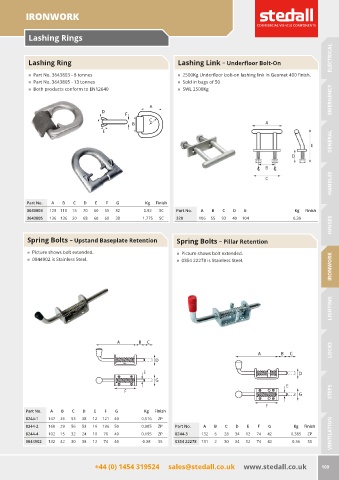

Page 111 - Stedall Parts Catalogue 14th Edition

IRONWORK

Lashing Rings

ELECTRICAL

Lashing Ring Lashing Link — Underfloor Bolt-On

„ Part No. 3643803 - 8 tonnes „ 2500Kg Underfloor bolt-on lashing link in Geomet 400 finish.
„ Part No. 3643805 - 13 tonnes „ Sold in bags of 50
„ Both products conform to EN12640 „ SWL 2500Kg

A EMERGENCY
D
F
C
B
E
GENERAL

HANDLES

Part No. A B C D E F G Kg Finish
3643803 123 110 15 70 60 55 32 0.92 SC Part No. A B C D E Kg Finish
3643805 136 136 20 68 60 60 38 1.775 SC 320 106 55 93 40 104 0.39
HINGES

Spring Bolts — Upstand Baseplate Retention Spring Bolts — Pillar Retention

„ Picture shows bolt extended. „ Picture shows bolt extended.
IRONWORK
„ 0844902 is Stainless Steel. „ 0354 22278 is Stainless Steel.

LIGHTING

E
A B C E

A B C LOCKS
D

E D
G
E
F STEPS
G
F
Part No. A B C D E F G Kg Finish
8244-1 147 26 53 38 12 121 40 0.516 ZP
8244-2 160 29 56 53 16 136 50 0.885 ZP Part No. A B C D E F G Kg Finish
8244-4 102 15 32 24 10 70 40 0.195 ZP 8244-3 132 6 28 34 12 74 42 0.385 ZP VENTILATION
0844902 132 42 30 38 12 74 40 0.38 SS 0354 22278 131 2 30 34 12 74 42 0.36 SS
