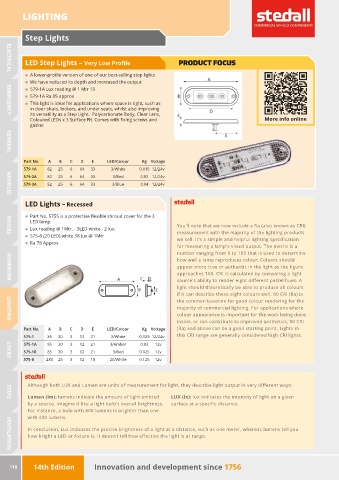

Page 120 - Stedall Parts Catalogue 14th Edition

LIGHTING

Step Lights

LED Step Lights – Very Low Profile PRODUCT FOCUS

ELECTRICAL
„ A lower-profile version of one of our best-selling step lights
„ We have reduced its depth and increased the output
„ 579-1A Lux reading @ 1 Mtr 10
„ 579-1A Ra 85 approx
„ This light is ideal for applications where space is tight, such as
in door shuts, lockers, and under seats, whilst also improving
its versatility as a Step Light. Polycarbonate Body, Clear Lens,
EMERGENCY
Coloured LEDs x 3 Surface Fit. Comes with fixing screws and More info online
gasket

GENERAL
Part No. A B C D E LED/Colour Kg Voltage
579-1A 82 25 6 64 33 3/White 0.015 12/24v
579-2A 82 25 6 64 33 3/Red 0.02 12/24v
579-3A 82 25 6 64 33 3/Blue 0.04 12/24v

HANDLES
LED Lights — Recessed

„ Part No. 575S is a protective flexible shroud cover for the 3
LED lamp.
„ Lux reading @ 1Mtr. - 3LED white - 2 lux. You'll note that we now include a Ra (also known as CRI)
measurement with the majority of the lighting products
„ 575-8 (20 LED) white 38 lux @ 1Mtr we sell. It's a simple and helpful lighting specification
HINGES
„ Ra 78 Approx
for measuring a lamp's visual output. The metric is a
number ranging from 0 to 100 that is used to determine
how well a lamp reproduces colour. Colours should
appear more true or authentic in the light as the figure
approaches 100. CRI is calculated by comparing a light
source's ability to render eight different pastel hues. A
IRONWORK
light should theoretically be able to produce all colours
if it can describe these eight colours well. 80 CRI (Ra) is
the common baseline for good colour rendering for the
majority of commercial lighting. For applications where
colour appearance is important for the work being done
inside, or can contribute to improved aesthetics, 90 CRI
LIGHTING
Part No. A B C D E LED/Colour Kg Voltage (Ra) and above can be a good starting point. Lights in
575-1 85 30 3 12 21 3/White 0.029 12/24v this CRI range are generally considered high CRI lights.
575-1A 85 30 3 12 21 3/Amber 0.03 12v
575-1R 85 30 3 12 21 3/Red 0.025 12v
575-8 280 25 3 12 18 20/White 0.125 12v
LOCKS

Although both LUX and Lumen are units of measurement for light, they describe light output in very different ways:
Lumen (lm): lumens indicate the amount of light emitted LUX (lx): lux indicates the intensity of light on a given
STEPS
by a source. Imagine it like a light bulb's overall brightness. surface at a specific distance.
For instance, a bulb with 800 lumens is brighter than one
with 400 lumens.
In conclusion, Lux indicates the precise brightness of a light at a distance, such as one meter, whereas lumens tell you
how bright a LED or fixture is, it doesn’t tell how effective the light is at range.
