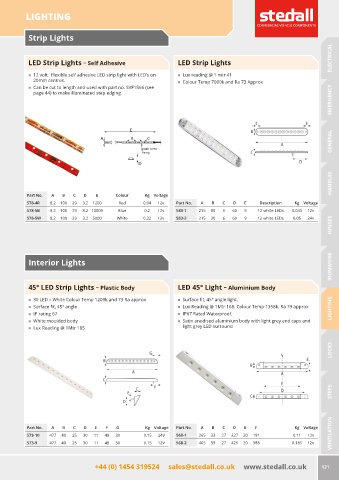

Page 123 - Stedall Parts Catalogue 14th Edition

LIGHTING

Strip Lights

ELECTRICAL

LED Strip Lights — Self Adhesive LED Strip Lights

„ 12 volt. Flexible self adhesive LED strip light with LED’s on „ Lux reading @ 1 mtr 41
20mm centres. „ Colour Temp 7000k and Ra 73 Approx
EMERGENCY
„ Can be cut to length and used with part no. SVF1566 (see
page 44) to make illuminated step edging.

E
A B C GENERAL
point screw
xing
D

HANDLES

Part No. A B C D E Colour Kg Voltage
578-4R 8.2 100 29 3.2 1200 Red 0.04 12v Part No. A B C D E Description Kg Voltage
578-5B 8.2 100 29 3.2 10000 Blue 0.2 12v 583-1 215 30 6 60 9 12 white LEDs 0.045 12v
HINGES
578-5W 8.2 100 29 3.2 5000 White 0.32 12v 583-2 215 30 6 60 9 12 white LEDs 0.05 24v

IRONWORK
Interior Lights

45° LED Strip Lights — Plastic Body LED 45° Light — Aluminium Body

„ 30 LED – White Colour Temp 1200k and 73 Ra approx „ Surface fit, 45° angle light.
„ Surface fit, 45° angle „ Lux Reading @ 1Mtr 168. Colour Temp 1358k. Ra 79 approx LIGHTING
„ IP rating 67 „ IP67 Rated Waterproof.
„ White moulded body „ Satin anodised aluminium body with light grey end caps and
„ Lux Reading @ 1Mtr 185 light grey LED surround

LOCKS

STEPS

VENTILATION
Part No. A B C D E F G Kg Voltage Part No. A B C D E F Kg Voltage
573-10 477 40 25 30 11 48 30 0.15 24V 568-1 265 33 27 227 20 191 0.11 12v
573-9 477 40 25 30 11 48 30 0.15 12V 568-2 465 33 27 426 20 388 0.185 12v
