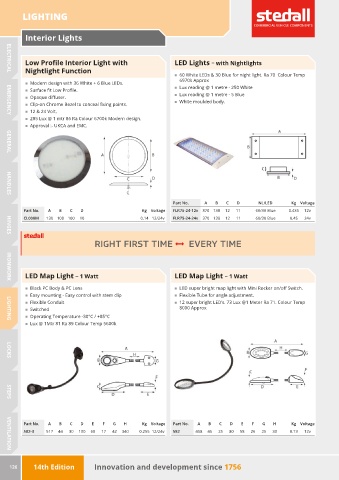

P. 128

LIGHTING



          Interior Lights




          Low Profile Interior Light with                     LED Lights — with Nightlights
          Nightlight Function
    ELECTRICAL
                                                              „  60 White LEDs & 30 Blue for night light. Ra 70  Colour Temp
                                                                6970k Approx
          „  Modern design with 36 White + 6 Blue LEDs.         Lux reading @ 1 metre - 250 White
          „  Surface fit Low Profile.                         „  Lux reading @ 1 metre - 5 Blue
          „  Opaque diffuser.                                 „
          „  Clip-on Chrome Bezel to conceal fixing points.   „  White moulded body.
          „  12 & 24 Volt.
    EMERGENCY
          „  285 Lux @ 1 mtr 86 Ra Colour 6700k Modern design.
          „  Approval :- UKCA and EMC.





    GENERAL







    HANDLES
                                                              Part No.   A   B  C   D       NL/LED     Kg  Voltage
         Part No.  A  B   C  D                     Kg  Voltage  FLR75-24-12v  370 138  12  11  60/30 Blue  0.435  12v

         CL008M  130 108 100  10                  0.14 12/24v  FLR75-24-24v  370 138  12  11  60/30 Blue  0.45  24v

    HINGES
                                  RIGHT FIRST TIME   EVERY TIME






          LED Map Light — 1 Watt                              LED Map Light — 1 Watt
    IRONWORK
          „  Black PC Body & PC Lens                          „  LED super bright map light with Mini Rocker on/off Switch.
          „  Easy mounting - Easy control with stem clip      „  Flexible Tube for angle adjustment.
          „  Flexible Conduit                                 „  12 super bright LED’s. 73 Lux @1 Meter Ra 71. Colour Temp
          „  Switched                                           8000 Approx
          „  Operating Temperature -30°C / +85°C
    LIGHTING
          „  Lux @ 1Mtr 81 Ra 89 Colour Temp 5600k





    LOCKS







    STEPS



         Part No.  A  B   C  D   E   F   G  H      Kg  Voltage  Part No.  A  B  C  D  E  F   G   H     Kg  Voltage
         582-3   517  44  30  100  60  17  42  340  0.255 12/24v  582  458  45  25  80  58  26  25  30  0.13  12v



    VENTILATION

    126      14th Edition         Innovation and development since 1756
