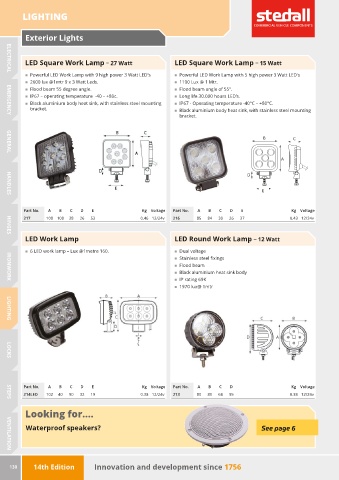

Page 132 - Stedall Parts Catalogue 14th Edition

LIGHTING

Exterior Lights

LED Square Work Lamp — 27 Watt LED Square Work Lamp — 15 Watt

ELECTRICAL
„ Powerful LED Work Lamp with 9 high power 3 Watt LED's „ Powerful LED Work Lamp with 5 high power 3 Watt LED's
„ 2600 lux @1mtr 9 x 3 Watt Leds. „ 1100 Lux @ 1 Mtr.
„ Flood beam 55 degree angle. „ Flood beam angle of 55°.
„ IP67 – operating temperature -40 – +80c. „ Long life 30.000 hours LED’s.
„ Black aluminium body heat sink, with stainless steel mounting „ IP67 - Operating temperature -40°C – +80°C.
bracket. „ Black aluminium body heat sink, with stainless steel mounting
bracket.
EMERGENCY

B C

GENERAL
A

D

E
HANDLES

Part No. A B C D E Kg Voltage Part No. A B C D E Kg Voltage

217 108 108 38 26 53 0.46 12/24v 216 85 84 38 26 37 0.43 12/24v

LED Work Lamp LED Round Work Lamp — 12 Watt
HINGES

„ 6 LED work lamp – Lux @1metre 160. „ Dual voltage
„ Stainless steel fixings
„ Flood beam
„ Black aluminium heat sink body
„ IP rating 69K
IRONWORK
„ 1970 lux@ 1mtr

LIGHTING

LOCKS

Part No. A B C D E Kg Voltage Part No. A B C D Kg Voltage
214LED 102 40 90 32 19 0.38 12/24v 213 80 80 68 95 0.38 12/24v
STEPS
Looking for....

Waterproof speakers? See page 6

VENTILATION

130 14th Edition Innovation and development since 1756
