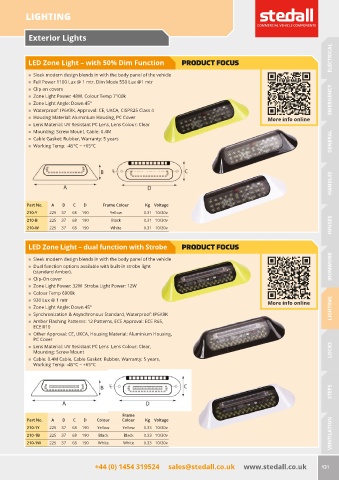

Page 133 - Stedall Parts Catalogue 14th Edition

LIGHTING

Exterior Lights

ELECTRICAL

LED Zone Light – with 50% Dim Function PRODUCT FOCUS

„ Sleek modern design blends in with the body panel of the vehicle
„ Full Power 1100 Lux @ 1 mtr. Dim Mode 550 Lux @1 mtr
„ Clip on covers
„ Zone Light Power: 48W, Colour Temp 7100k EMERGENCY
„ Zone Light Angle: Down 45°
„ Waterproof: IP6K9K, Approval: CE, UKCA, CISPR25 Class 4
„ Housing Material: Aluminium Housing, PC Cover More info online
„ Lens Material: UV Resistant PC Lens, Lens Colour: Clear
„ Mounting: Screw Mount, Cable: 0.4M
„ Cable Gasket: Rubber, Warranty: 5 years GENERAL
„ Working Temp: -45°C ~ +65°C

HANDLES

Part No. A B C D Frame Colour Kg Voltage
210-Y 225 37 68 190 Yellow 0.31 10/30v
HINGES
210-B 225 37 68 190 Black 0.31 10/30v
210-W 225 37 68 190 White 0.31 10/30v

LED Zone Light – dual function with Strobe PRODUCT FOCUS

„ Sleek modern design blends in with the body panel of the vehicle
„ Dual function options available with built-in strobe light IRONWORK
(standard Amber).
„ Clip-On cover
„ Zone Light Power: 32W Strobe Light Power: 12W
„ Colour Temp 6900k
„ 930 Lux @ 1 mtr More info online
„ Zone Light Angle: Down 45° LIGHTING
„ Synchronization & Asynchronous Standard, Waterproof: IP6K9K
„ Amber Flashing Patterns: 12 Patterns, ECE Approval: ECE R65,
ECE R10
„ Other Approval: CE, UKCA, Housing Material: Aluminium Housing,
PC Cover
„ Lens Material: UV Resistant PC Lens Lens Colour: Clear,
Mounting: Screw Mount LOCKS
„ Cable: 0.4M Cable, Cable Gasket: Rubber, Warranty: 5 years,
Working Temp: -45°C ~ +65°C

STEPS

Frame
Part No. A B C D Colour Colour Kg Voltage
210-1Y 225 37 68 190 Yellow Yellow 0.33 10/30v
210-1B 225 37 68 190 Black Black 0.33 10/30v VENTILATION
210-1W 225 37 68 190 White White 0.33 10/30v
