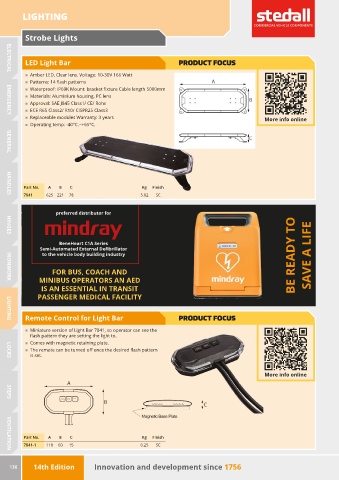

Page 138 - Stedall Parts Catalogue 14th Edition

LIGHTING

Strobe Lights

LED Light Bar PRODUCT FOCUS

ELECTRICAL
„ Amber LED, Clear lens. Voltage: 10-30V 166 Watt
„ Patterns: 14 flash patterns
„ Waterproof: IP69K Mount: bracket fixture Cable length 5000mm
„ Materials: Aluminium housing, PC lens
„ Approval: SAE J845 Class1/ CE/ Rohs
„ ECE R65 Class2/ R10/ CISPR25 Class3
EMERGENCY
„ Replaceable modules Warranty: 3 years More info online
„ Operating temp: -40°C.~+65°C.

GENERAL

Part No. A B C Kg Finish
7841 625 221 78 5.82 SC
HANDLES

preferred distributor for

HINGES
BeneHeart C1A Series
Semi-Automated External Defibrillator
to the vehicle body building industry BE READY TO SAVE A LIFE

FOR BUS, COACH AND
MINIBUS OPERATORS AN AED
IRONWORK
IS AN ESSENTIAL IN TRANSIT
PASSENGER MEDICAL FACILITY

Remote Control for Light Bar PRODUCT FOCUS
LIGHTING
„ Miniature version of Light Bar 7841, so operator can see the
flash pattern they are setting the light to.
„ Comes with magnetic retaining plate.
„ The remote can be turned off once the desired flash pattern A
is set.
LOCKS
ON/OFF ON/OFF MODE
B
LIGHT BAR CNTLR
More info online
A

ON/OFF ON/OFF MODE
STEPS
B C
LIGHT BAR CNTLR
Magnetic Base Plate

Part No. A B C C Kg Finish
7841-1 118 60 15 0.25 SC
Magnetic Base Plate
VENTILATION

136 14th Edition Innovation and development since 1756
