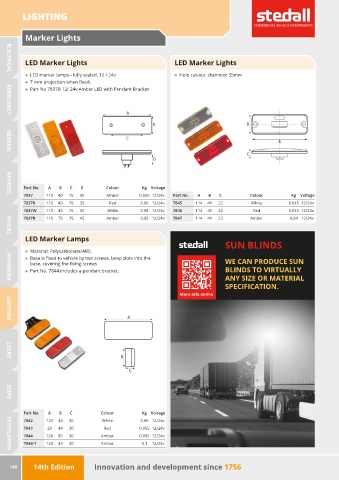

Page 142 - Stedall Parts Catalogue 14th Edition

LIGHTING

Marker Lights

LED Marker Lights LED Marker Lights

ELECTRICAL
„ LED marker lamps - fully sealed. 12 / 24v „ Hole cut-out diameter 35mm
„ 7 mm projection when fixed.
„ Part No 7837B 12/ 24v Amber LED with Pendant Bracket

EMERGENCY

GENERAL

Part No. A B C D Colour Kg Voltage
7837 110 40 75 35 Amber 0.065 12/24v Part No. A B C Colour Kg Voltage
HANDLES
7837R 110 40 75 35 Red 0.06 12/24v 7845 114 41 22 White 0.045 12/24v
7837W 110 40 75 35 White 0.08 12/24v 7846 114 41 22 Red 0.045 12/24v

7837B 110 75 75 45 Amber 0.95 12/24v 7847 114 41 22 Amber 0.04 12/24v

LED Marker Lamps
HINGES
SUN BLINDS
„ Material: Polycarbonate/ABS.
„ Base is fixed to vehicle by two screws, lamp slots into the WE CAN PRODUCE SUN
base, covering the fixing screws.
„ Part No. 7844 includes a pendant bracket. BLINDS TO VIRTUALLY
ANY SIZE OR MATERIAL
IRONWORK
SPECIFICATION.
More info online

LIGHTING

LOCKS

STEPS

Part No. A B C Colour Kg Voltage
7842 120 44 30 White 0.06 12/24v
7843 20 44 30 Red 0.055 12/24v
7844 120 85 30 Amber 0.095 12/24v
7844-1 120 44 30 Amber 0.1 12/24v
VENTILATION

140 14th Edition Innovation and development since 1756
