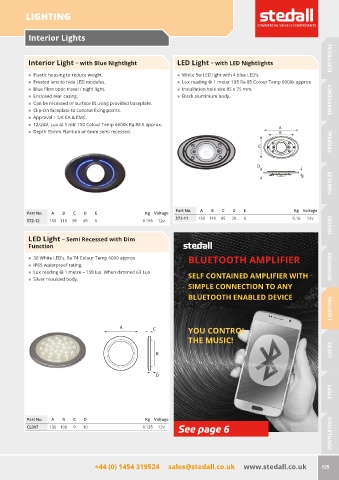

Page 127 - Stedall Parts Catalogue 14th Edition
P. 127

LIGHTING



           Interior Lights

                                                                                                                     ELECTRICAL

           Interior Light — with Blue Nightlight               LED Light — with LED Nightlights

           „  Plastic housing to reduce weight.                „  White 5w LED light with 4 blue LED’s.
           „  Frosted lens to hide LED modules.                „  Lux reading @ 1 meter 195 Ra 85 Colour Temp 6000k approx
           „  Blue fibre optic travel / night light.           „  Installation hole size 85 x 75 mm.
           „  Enclosed rear casing.                            „  Black aluminium body.                              EMERGENCY
           „  Can be recessed or surface fit using provided baseplate.
           „  Clip-On faceplate to conceal fixing points.
           „  Approval :- UK CA & EMC.
           „  12/24V. Lux at 1 mtr 150 Colour Temp 6600k Ra 83.5 approx.
                                                                                                                     GENERAL
           „  Depth 15mm Plant-on or 6mm semi recessed.







                                                                                                                     HANDLES






                                                               Part No.  A  B  C   D   E                Kg  Voltage
          Part No.  A  B   C  D   E                 Kg  Voltage
                                                               572-11  150 110  95  20  6               0.16  12v
                                                                                                                     HINGES
          572-12  150 110  95  49  6               0.195  12v
           LED Light — Semi Recessed with Dim
           Function

           „  30 White LED’s. Ra 74 Colour Temp 6000 approx        BLUETOOTH AMPLIFIER
           „  IP65 waterproof rating.                                                                                IRONWORK
           „  Lux reading @ 1 metre – 158 lux. When dimmed 63 Lux  SELF CONTAINED AMPLIFIER WITH
           „  Silver moulded body.
                                                                   SIMPLE CONNECTION TO ANY
                                                                   BLUETOOTH ENABLED DEVICE
                                                                                                                     LIGHTING




                                           A           C           YOU CONTROL
                                                                   THE MUSIC!
                                                                                                                     LOCKS
                                                        B



                                                        D
                                                                                                                     STEPS





                                                                                                                     VENTILATION
          Part No.  A  B   C  D                     Kg  Voltage
                                                                See page 6
          CL007   130 108  9  10                   0.135  12v





                                  +44 (0) 1454 319524     sales@stedall.co.uk     www.stedall.co.uk               125
