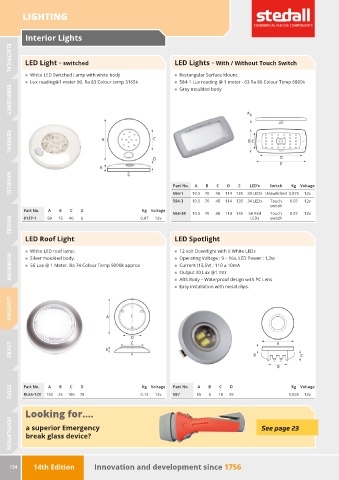

Page 126 - Stedall Parts Catalogue 14th Edition

LIGHTING

Interior Lights

LED Light — switched LED Lights — With / Without Touch Switch

ELECTRICAL
„ White LED Switched Lamp with white body „ Rectangular Surface Mount.
„ Lux reading@1 meter 90. Ra 83 Colour temp 3165k „ 584-1 Lux reading @ 1 meter - 63 Ra 86 Colour Temp 6800k
„ Grey moulded body

EMERGENCY

GENERAL

Part No. A B C D E LED’s Switch Kg Voltage
584-1 10.5 70 48 114 135 30 LEDs Unswitched 0.075 12v
HANDLES
584-3 10.5 70 48 114 135 34 LEDs Touch 0.07 12v
switch
Part No. A B C D Kg Voltage

584-3R 10.5 70 48 114 135 34 Red Touch 0.07 12v
8137-1 80 15 40 6 0.07 12v LEDs switch
LED Roof Light LED Spotlight
HINGES

„ White LED roof lamp. „ 12 volt Downlight with 6 White LEDs
„ Silver moulded body. „ Operating Voltage : 9 – 16v, LED Power : 1,2w
„ 56 Lux @ 1 Meter. Ra 74 Colour Temp 9000k approx „ Current (13,5V) : 110 ± 10mA
„ Output 40 Lux @1 mtr
„ ABS Body – Waterproof design with PC Lens
IRONWORK
„ Easy installation with metal clips.

LIGHTING

LOCKS

Part No. A B C D Kg Voltage Part No. A B C D Kg Voltage
RL65-12V 150 25 105 78 0.13 12v 587 55 6 18 35 0.025 12v
STEPS
Looking for....

a superior Emergency See page 23
break glass device?
