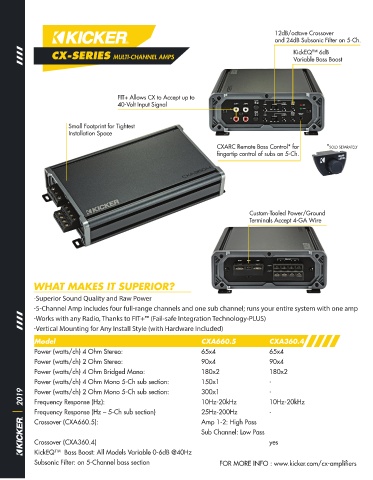

Page 2 - 2019 New Kicker Products

12dB/octave Crossover
and 24dB Subsonic Filter on 5-Ch.
KickEQ™ 6dB
CX-SERIES MULTI-CHANNEL AMPS Variable Bass Boost

FIT+ Allows CX to Accept up to
40-Volt Input Signal

Small Footprint for Tightest
Installation Space

CXARC Remote Bass Control* for *SOLD SEPARATELY
fingertip control of subs on 5-Ch.

Custom-Tooled Power/Ground
Terminals Accept 4-GA Wire

WHAT MAKES IT SUPERIOR?

-Superior Sound Quality and Raw Power
-5-Channel Amp includes four full-range channels and one sub channel; runs your entire system with one amp
-Works with any Radio, Thanks to FIT+™ (Fail-safe Integration Technology-PLUS)
-Vertical Mounting for Any Install Style (with Hardware Included)

Model CXA660.5 CXA360.4
Power (watts/ch) 4 Ohm Stereo: 65x4 65x4
Power (watts/ch) 2 Ohm Stereo: 90x4 90x4

Power (watts/ch) 4 Ohm Bridged Mono: 180x2 180x2
Power (watts/ch) 4 Ohm Mono 5-Ch sub section: 150x1 -
2019 Power (watts/ch) 2 Ohm Mono 5-Ch sub section: 300x1 - 10Hz-20kHz
10Hz-20kHz
Frequency Response (Hz):
Frequency Response (Hz – 5-Ch sub section) 25Hz-200Hz -
Crossover (CXA660.5): Amp 1-2: High Pass
Sub Channel: Low Pass
Crossover (CXA360.4) yes
KickEQ™ Bass Boost: All Models Variable 0-6dB @40Hz

Subsonic Filter: on 5-Channel bass section FOR MORE INFO : www.kicker.com/cx-amplifiers
