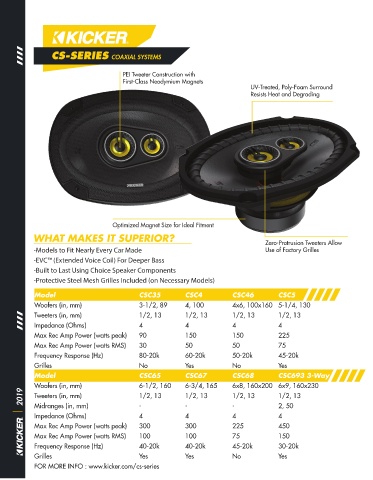

Page 4 - 2019 New Kicker Products

CS-SERIES COAXIAL SYSTEMS

PEI Tweeter Construction with
First-Class Neodymium Magnets
UV-Treated, Poly-Foam Surround
Resists Heat and Degrading

Optimized Magnet Size for Ideal Fitment
WHAT MAKES IT SUPERIOR? Zero-Protrusion Tweeters Allow

-Models to Fit Nearly Every Car Made Use of Factory Grilles
-EVC™ (Extended Voice Coil) For Deeper Bass
-Built to Last Using Choice Speaker Components
-Protective Steel Mesh Grilles Included (on Necessary Models)

Model CSC35 CSC4 CSC46 CSC5

Woofers (in, mm) 3-1/2, 89 4, 100 4x6, 100x160 5-1/4, 130
Tweeters (in, mm) 1/2, 13 1/2, 13 1/2, 13 1/2, 13
Impedance (Ohms) 4 4 4 4
Max Rec Amp Power (watts peak) 90 150 150 225
Max Rec Amp Power (watts RMS) 30 50 50 75
Frequency Response (Hz) 80-20k 60-20k 50-20k 45-20k
Grilles No Yes No Yes
Model CSC65 CSC67 CSC68 CSC693 3-Way
Woofers (in, mm) 6-1/2, 160 6-3/4, 165 6x8, 160x200 6x9, 160x230
2019 Tweeters (in, mm) 1/2, 13 1/2, 13 1/2, 13 1/2, 13

-
2, 50
-
-
Midranges (in, mm)
Impedance (Ohms) 4 4 4 4
Max Rec Amp Power (watts peak) 300 300 225 450
Max Rec Amp Power (watts RMS) 100 100 75 150
Frequency Response (Hz) 40-20k 40-20k 45-20k 30-20k
Grilles Yes Yes No Yes

FOR MORE INFO : www.kicker.com/cs-series
