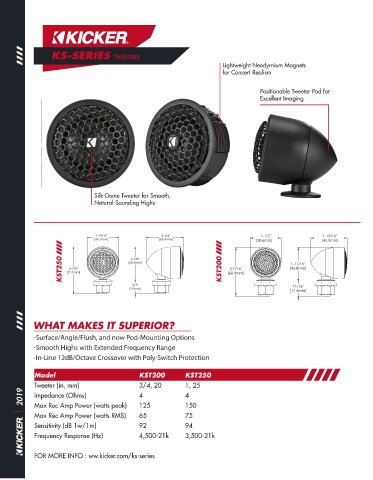

Page 9 - 2019 New Kicker Products

KS-SERIES TWEETERS
Lightweight Neodymium Magnets
for Concert Realism

Positionable Tweeter Pod for
Excellent Imaging

Silk-Dome Tweeter for Smooth,
Natural-Sounding Highs

1-15/16'' 2-1/4'' 1-1/2'' 1-13/16''
[48.1mm] [56.4mm] [38.6mm] [45.5mm]

KST250 [71.9mm] [53.9mm] KST200 [60.9mm] [42.8mm]
2-1/8''
1-11/16''
2-7/16''
2-7/8''
3/4'' 11/16''
[19mm]
[17.5mm]

WHAT MAKES IT SUPERIOR?

-Surface/Angle/Flush, and now Pod-Mounting Options
-Smooth Highs with Extended Frequency Range
-In-Line 12dB/Octave Crossover with Poly-Switch Protection

Model KST200 KST250
Tweeter (in, mm) 3/4, 20 1, 25
2019 Impedance (Ohms) 4 4

Max Rec Amp Power (watts peak)
125
150
Max Rec Amp Power (watts RMS) 65 75
Sensitivity (dB 1w/1m) 92 94
Frequency Response (Hz) 4,500-21k 3,500-21k

FOR MORE INFO : ww.kicker.com/ks-series
