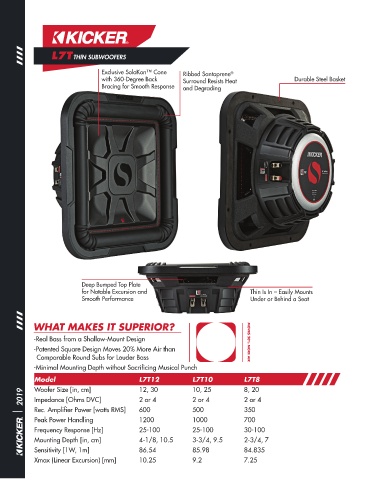

Page 6 - 2019 New Kicker Products
P. 6

L7T THIN SUBWOOFERS

                                   Exclusive SoloKon™ Cone     Ribbed Santoprene ®
                                   with 360-Degree Back        Surround Resists Heat                 Durable Steel Basket
                                   Bracing for Smooth Response  and Degrading








































                             Deep Bumped Top Plate
                             for Notable Excursion and                                Thin Is In – Easily Mounts
                             Smooth Performance                                       Under or Behind a Seat




            WHAT MAKES IT SUPERIOR?

            -Real Bass from a Shallow-Mount Design                                   MOVES 20% MORE AIR
            -Patented Square Design Moves 20% More Air than
              Comparable Round Subs for Louder Bass

            -Minimal Mounting Depth without Sacrificing Musical Punch
             Model                              L7T12             L7T10            L7T8

         2019  Woofer Size [in, cm]             12, 30            10, 25           8, 20
                                                                                   2 or 4
             Impedance [Ohms DVC]
                                                2 or 4
                                                                  2 or 4
             Rec. Amplifier Power [watts RMS]    600               500              350
             Peak Power Handling                1200              1000             700
             Frequency Response [Hz]            25-100            25-100           30-100
             Mounting Depth [in, cm]              4-1/8, 10.5       3-3/4, 9.5       2-3/4, 7
             Sensitivity [1W, 1m]               86.54             85.98            84.835
             Xmax (Linear Excursion) [mm]       10.25             9.2              7.25
