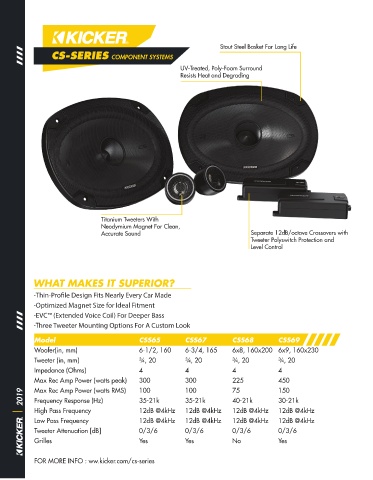

Page 5 - 2019 New Kicker Products

Stout Steel Basket For Long Life
CS-SERIES COMPONENT SYSTEMS

UV-Treated, Poly-Foam Surround
Resists Heat and Degrading

Titanium Tweeters With
Neodymium Magnet For Clean,
Accurate Sound Separate 12dB/octave Crossovers with
Tweeter Polyswitch Protection and
Level Control

WHAT MAKES IT SUPERIOR?

-Thin-Pro le Design Fits Nearly Every Car Made

-Optimized Magnet Size for Ideal Fitment
-EVC™ (Extended Voice Coil) For Deeper Bass
-Three Tweeter Mounting Options For A Custom Look

Model CSS65 CSS67 CSS68 CSS69
Woofer(in, mm) 6-1/2, 160 6-3/4, 165 6x8, 160x200 6x9, 160x230
Tweeter (in, mm) ¾, 20 ¾, 20 ¾, 20 ¾, 20
Impedance (Ohms) 4 4 4 4
Max Rec Amp Power (watts peak) 300 300 225 450

2019 Max Rec Amp Power (watts RMS) 100 100 75 150
Frequency Response (Hz)
35-21k
30-21k
40-21k
35-21k
High Pass Frequency 12dB @4kHz 12dB @4kHz 12dB @4kHz 12dB @4kHz
Low Pass Frequency 12dB @4kHz 12dB @4kHz 12dB @4kHz 12dB @4kHz
Tweeter Attenuation [dB] 0/3/6 0/3/6 0/3/6 0/3/6
Grilles Yes Yes No Yes

FOR MORE INFO : ww.kicker.com/cs-series
