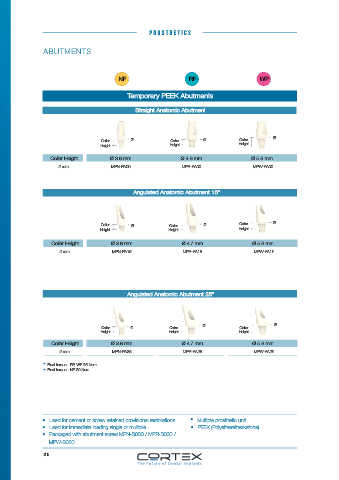

Page 25 - Catalogue_2019 INSIDE_HD_Classical

pr o s th etic s

ABUTMENTS

NP RP WP

Temporary PEEK Abutments

Straight Anatomic Abutment

Collar � Collar � Collar �
Height Height Height

Collar Height Ø 3.8 mm Ø 4.8 mm Ø 5.8 mm
2 mm MPN-PA00 MPR-PA00 MPW-PA00

Angulated Anatomic Abutment 15°

Collar � Collar � Collar �
Height Height Height

Collar Height Ø 3.8 mm Ø 4.7 mm Ø 5.8 mm
2 mm MPN-PA15 MPR-PA15 MPW-PA15

Angulated Anatomic Abutment 25°

Collar � Collar � Collar �
Height Height Height

Collar Height Ø 3.8 mm Ø 4.7 mm Ø 5.8 mm
2 mm MPN-PA25 MPR-PA25 MPW-PA25

* Final torque - RP, WP 25 Ncm.
* Final torque - NP 20 Ncm.

• Used for cement or screw retained provisional restorations. • Multiple prosthetic unit.
• Used for immediate loading single or multiple. • PEEK (Polyetheretherketone).
• Packaged with abutment screw MPN-S030 / MPR-S030 /
MPW-S030.

25
