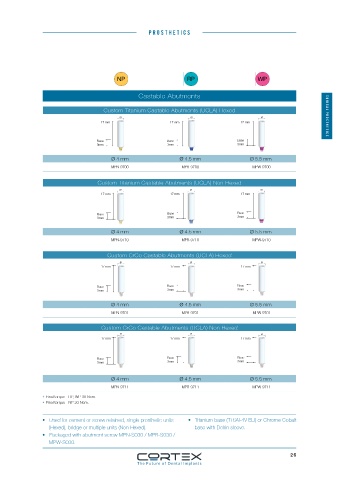

P. 26
pr o s th etic s
NP RP WP
Castable Abutments
Custom Titanium Castable Abutments (UCLA) Hexed
� � � c on ic al pr o s th etic s
17 mm 17 mm 17 mm
Base Base Base
3mm 3mm 3mm
Ø 4 mm Ø 4.5 mm Ø 5.5 mm
MPN-9700 MPR-9700 MPW-9700
Custom Titanium Castable Abutments (UCLA) Non Hexed
� � �
17 mm 17 mm 17 mm
Base Base Base
3mm 3mm 3mm
Ø 4 mm Ø 4.5 mm Ø 5.5 mm
MPN-9710 MPR-9710 MPW-9710
Custom CrCo Castable Abutments (UCLA) Hexed
� � �
17 mm 17 mm 17 mm
Base Base Base
3mm 3mm 3mm
Ø 4 mm Ø 4.5 mm Ø 5.5 mm
MPN-9701 MPR-9701 MPW-9701
Custom CrCo Castable Abutments (UCLA) Non Hexed
� � �
17 mm 17 mm 17 mm
Base Base Base
3mm 3mm 3mm
Ø 4 mm Ø 4.5 mm Ø 5.5 mm
MPN-9711 MPR-9711 MPW-9711
* Final torque - RP, WP 30 Ncm.
* Final torque - NP 20 Ncm.
Used for cement or screw retained, single prosthetic units Titanium base (Ti 6Al-4V ELI) or Chrome Cobalt
(Hexed), bridge or multiple units (Non Hexed). base with Delrin sleeve.
Packaged with abutment screw MPN-S030 / MPR-S030 /
MPW-S030.
