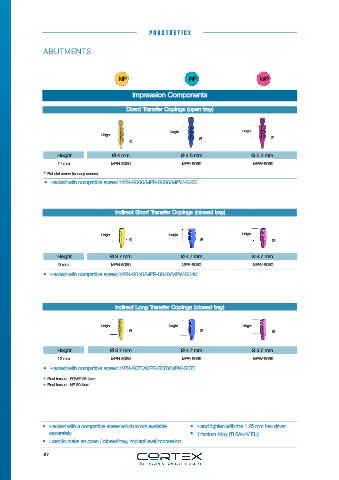

Page 27 - Catalogue_2019 INSIDE_HD_Classical
P. 27

pr o s th etic s


                ABUTMENTS




                                          NP                       RP                       WP


                                               Impression Components

                                             Direct Transfer Copings (open tray)




                                                            Height                    Height
                                     Height
                                                                       �                        �
                                              �
                     Height             Ø 4 mm                  Ø 4.5 mm                 Ø 5.2 mm
                     11 mm              MPN-8060                 MPR-8060                 MPW-8060
                *  Flat slot screw for easy access.
                •   Packed with compatible screw: MPN-S060/MPR-S060/MPW-S060





                                         Indirect Short Transfer Copings (closed tray)



                                     Height                 Height                    Height
                                              �                        �                        �


                     Height             Ø 3.7 mm                Ø 4.7 mm                 Ø 4.7 mm
                      9 mm              MPN-8080                 MPR-8080                 MPW-8080
                •   Packed with compatible screw: MPN-S040/MPR-S040/MPW-S040





                                         Indirect Long Transfer Copings (closed tray)


                                    Height                  Height                    Height
                                              �                        �                        �


                     Height             Ø 3.7 mm                Ø 4.7 mm                 Ø 4.7 mm
                     12 mm              MPN-8085                 MPR-8085                 MPW-8085
                •   Packed with compatible screw: MPN-S070/MPR-S070/MPW-S070
                *  Final torque - RP,WP 25 Ncm.
                *  Final torque - NP 20 Ncm.







                •   Packed with a compatible screw which is not available   •   Hand tighten with the 1.25 mm hex driver.
                  separately.                                       •   Titanium Alloy (Ti 6Al-4V ELI).
                •   Used to make an open / closed tray, implant level impression.

                27
