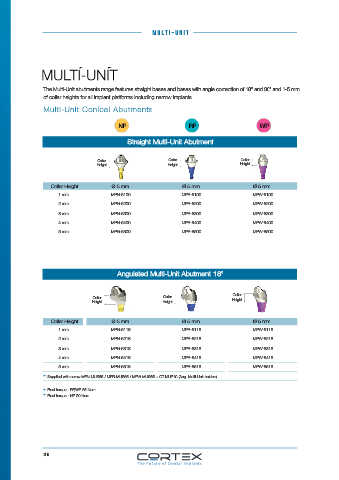

Page 29 - Catalogue_2019 INSIDE_HD_Classical

m ul ti -un i t

The Multi-Unit abutments range features straight bases and bases with angle correction of 18° and 30° and 1-5 mm
of collar heights for all implant platforms including narrow implants.
Multi-Unit Conical Abutments

NP RP WP

Straight Multi-Unit Abutment

Collar Collar Collar
Height Height Height

Collar Height Ø 5 mm Ø 5 mm Ø 5 mm
1 mm MPN-5100 MPR-5100 MPW-5100
2 mm MPN-5200 MPR-5200 MPW-5200
3 mm MPN-5300 MPR-5300 MPW-5300
4 mm MPN-5400 MPR-5400 MPW-5400
5 mm MPN-5500 MPR-5500 MPW-5500

Angulated Multi-Unit Abutment 18°

Collar
Collar Collar Height
Height Height

Collar Height Ø 5 mm Ø 5 mm Ø 5 mm
1 mm MPN-5118 MPR-5118 MPW-5118
2 mm MPN-5218 MPR-5218 MPW-5218
3 mm MPN-5318 MPR-5318 MPW-5318
4 mm MPN-5418 MPR-5418 MPW-5418
5 mm MPN-5518 MPR-5518 MPW-5518
* Supplied with screw MPN-MUS65 / MPR-MUS65 / MPW-MUS65 + CT-MUP10 (Ang. Multi-Unit holders)

* Final torque - RP,WP 25 Ncm.
* Final torque - NP 20 Ncm.
