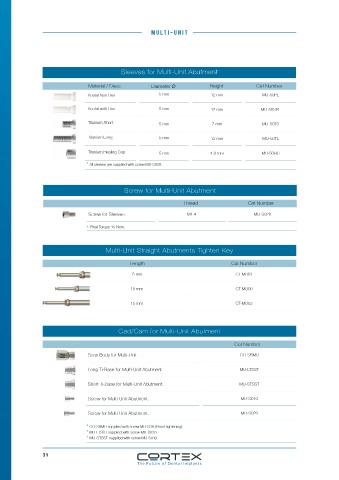

Page 31 - Catalogue_2019 INSIDE_HD_Classical

m ul ti -un i t

Sleeves for Multi-Unit Abutment

Material / Desc. Diameter Ø Height Cat Number
Acetal Non Hex 5 mm 12 mm MU-50PL

Acetal with Hex 5 mm 12 mm MU-50SPL

Titanium Short 5 mm 7 mm MU-50TS

Titanium Long 5 mm 12 mm MU-50TL

Titanium Healing Cap 5 mm 4.8 mm MU-50HC

* All sleeves are supplied with screw MU-S020.

Screw for Multi-Unit Abutment

Thread Cat Number
Screw for Sleeves M1.4 MU-S020

* Final Torque 15 Ncm.

Multi-Unit Straight Abutments Tighten Key

Length Cat Number

5 mm CT-MU01

10 mm CT-MU00

15 mm CT-MU02

Cad/Cam for Multi-Unit Abutment

Cat Number
Scan Body for Multi-Unit CO-SBMU

Long Ti-Base for Multi-Unit Abutment. MU-LTSST

Short Ti-Base for Multi-Unit Abutment. MU-STSST

Screw for Multi-Unit Abutment. MU-S010

Screw for Multi-Unit Abutment. MU-S020

* CO-SBMU supplied with screw MU-SSB (Hand tightening).
* MU-LTSST supplied with screw MU-S020.
* MU-STSST supplied with screw MU-S010.
