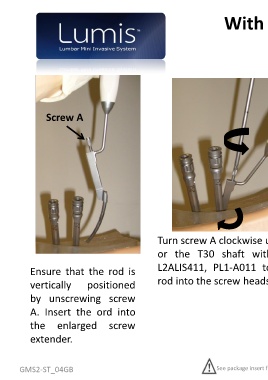

With the rotating rod introducer :

MS1-A276

Screw A

Turn screw A clockwise using fingers

or the T30 shaft with U1-A622,

Ensure that the rod is L2ALIS411, PL1-A011 to pivot the To release the rod, unscrew the

vertically positioned rod into the screw heads. locking screw with the MS1-

by unscrewing screw A235 (T10 screwdriver for rod

A. Insert the ord into introducer).

the enlarged screw

extender.

GMS2-ST_04GB See package insert for labeling limitation 41
