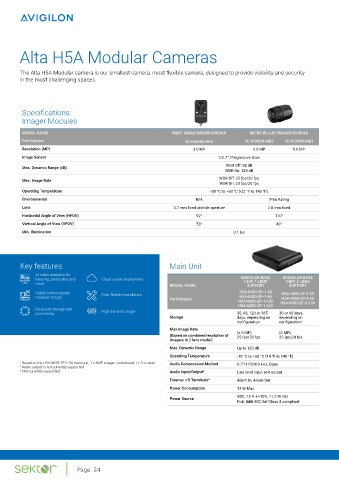

Page 24 - SEKTOR Product Catalog 2025

Alta H5A Modular Cameras

The Alta H5A Modular camera is our smallest camera, most flexible camera, designed to provide visibility and security
in the most challenging spaces.

Specifications:
Imager Modules

MODEL NAME RIGHT ANGLE IMAGER MODULE MICRO BULLET IMAGER MODULE
Part Number 3C-H5MOD-RP4 3C-H5MOD-MB2 5C-H5MOD-MB3
Resolution (MP) 3.0 MP 3.0 MP 5.0 MP
Image Sensor 1/2.7 ” Progressive Scan
WDR Off: 82 dB
Max. Dynamic Range (dB)
WDR On: 120 dB
WDR Off: 25 fps/30 fps
Max. Image Rate
WDR On: 20 fps/20 fps
Operating Temperature -30 °C to +60 °C (-22 °F to 140 °F)
Environmental N/A IP66 Rating
Lens 3.7 mm fixed pinhole aperture 2.8 mm fixed
Horizontal Angle of View (HFOV) 92° 110°
Vertical Angle of View (VFOV) 53° 80°
Min. Illumination 0.1 lux

Key features Main Unit

AI video analytics for
loitering, anomalies and Cloud-native deployment MODULAR BASE MODULAR BASE
more MODEL NAME UNIT, 1 LENS UNIT, 2 LENS
SUPPORT
SUPPORT
Highly customizable Fast, flexible installation H5A-MOD-2P-1-30 H5A-MOD-2P-2-30
H5A-MOD-2P-1-60
modular design Part Number H5A-MOD-2P-1-120 H5A-MOD-2P-2-60
H5A-MOD-2P-1-365 H5A-MOD-2P-2-120
On-board storage and High dynamic range
processing 30, 60, 120 or 365 30 or 60 days,
Storage days, depending on depending on
configuration configuration
Max Image Rate
(Based on combined resolution of (≤ 5 MP) (6 MP)
25 fps/30 fps
25 fps/24 fps
imagers in 2 lens model)
Max. Dynamic Range Up to 120 dB
Operating Temperature -10 °C to +60 °C (14 °F to 140 °F)
* Based on the H5A-MOD-2P-1-30 main unit, 1 x 3MP imager module and 1 x 2m cable Audio Compression Method G.711 PCM 8 kHz, Opus
1 Audio output is not currently supported
2 Not currently supported Audio Input/Output¹ Line level input and output
External I/O Terminals² Alarm In, Alarm Out
Power Consumption 13 W Max
VDC: 12 V +/-10%, 11.5 W min
Power Source
PoE: IEEE 802.3af Class 3 compliant
