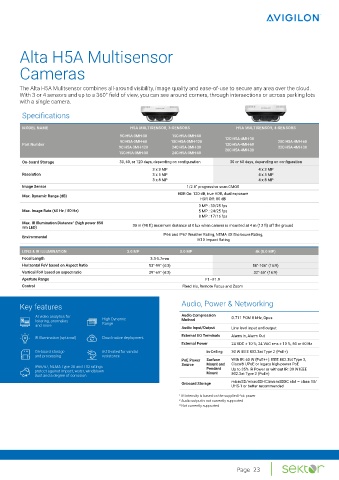

Page 23 - SEKTOR Product Catalog 2025

Alta H5A Multisensor

Cameras

The Alta H5A Mulitsensor combines all-around visibility, image quality and ease-of-use to secure any area over the cloud.
With 3 or 4 sensors and up to a 360° field of view, you can see around corners, through intersections or across parking lots
with a single camera.

Specifications

MODEL NAME H5A MULTISENSOR, 3-SENSORS H5A MULTISENSOR, 4-SENSORS
9C-H5A-3MH-30 15C-H5A-3MH-60 12C-H5A-4MH-30
9C-H5A-3MH-60 15C-H5A-3MH-120 20C-H5A-4MH-60
Part Number 12C-H5A-4MH-60
9C-H5A-3MH-120 24C-H5A-3MH-30 20C-H5A-4MH-30 32C-H5A-4MH-30
15C-H5A-3MH-30 24C-H5A-3MH-60
On-board Storage 30, 60, or 120 days, depending on configuration 30 or 60 days, depending on configuration
3 x 3 MP 4 x 3 MP
Resolution 3 x 5 MP 4 x 5 MP
3 x 8 MP 4 x 8 MP
Image Sensor 1/2.8” progressive scan CMOS
HDR On: 120 dB, true HDR, dual exposure
Max. Dynamic Range (dB)
HDR Off: 80 dB
3 MP : 30/25 fps
Max. Image Rate (60 Hz / 50 Hz) 5 MP : 24/25 fps
8 MP : 17/16 fps
Max. IR Illumination Distance¹ (high power 850 30 m (98 ft) maximum distance at 0 lux when camera is mounted at 4 m (13 ft) off the ground
nm LED)
Environmental IP66 and IP67 Weather Rating, NEMA 4X Enclosure Rating,
IK10 Impact Rating
LENS & IR ILLUMINATION 3.0 MP 5.0 MP 4k (8.0 MP)
Focal Length 3.3-5.7mm
Horizontal FoV based on Aspect Ratio 53°-99° (4:3) 58°-106° (16:9)
Vertical FoV based on aspect ratio 39°-69° (4:3) 32°-55° (16:9)
Aperture Range F1 - F1.9
Control Fixed Iris, Remote Focus and Zoom

Key features Audio, Power & Networking

AI video analytics for High Dynamic Audio Compression G.711 PCM 8 kHz, Opus
loitering, anomalies Range Method
and more
Audio Input/Output Line level input and output
IR Illumination (optional) Cloud-native deployment External I/O Terminals Alarm In, Alarm Out
External Power 24 VDC ± 10 %; 24 VAC rms ± 10 %, 50 or 60 Hz
On-board storage IK10-rated for vandal In-Ceiling 30 W IEEE 802.3at Type 2 (PoE+)
and processing resistance
PoE Power Surface With IR: 60 W (PoE++): IEEE 802.3bt Type 3,
IP66/67, NEMA Type 3X and TS2 ratings Source Mount and Cisco® UPoE or legacy high-power PoE
Pendant
Up to 35% IR Power or without IR: 30 W IEEE
protect against impact, water, windblown Mount
dust and a degree of corrosion 802.3at Type 2 (PoE+)
microSD/microSDHC/microSDXC slot – class 10/
Onboard Storage
UHS-1 or better recommended
¹ IR intensity is based on the supplied PoE power
² Audio output is not currently supported
³ Not currently supported
