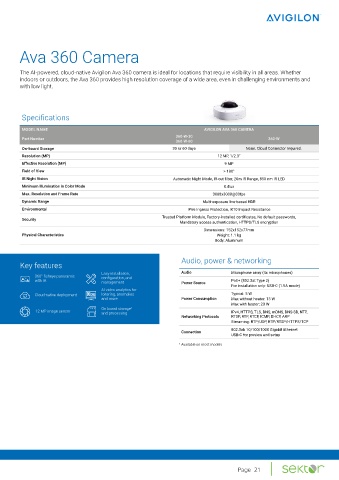

Page 21 - SEKTOR Product Catalog 2025

Ava 360 Camera

The AI-powered, cloud-native Avigilon Ava 360 camera is ideal for locations that require visibility in all areas. Whether
indoors or outdoors, the Ava 360 provides high resolution coverage of a wide area, even in challenging environments and
with low light.

Specifications

MODEL NAME AVIGILON AVA 360 CAMERA
360-W-30
Part Number 360-W
360-W-60
On-board Storage 30 or 60 days None. Cloud Connector required.
Resolution (MP) 12 MP, 1/2.3”
Effective Resolution (MP) 9 MP
Field of View > 180°
IR Night Vision Automatic Night Mode, IR-cut filter, 20m IR Range, 850 nm IR LED
Minimum Illumination in Color Mode 0.4lux
Max. Resolution and Frame Rate 3008x3008@30fps
Dynamic Range Multi-exposure line-based HDR
Environmental IP66 Ingress Protection, IK10 Impact Resistance
Trusted Platform Module, Factory-installed certificates, No default passwords,
Security
Mandatory access authentication, HTTPS/TLS encryption
Dimensions: 152x152x77mm
Physical Characteristics Weight: 1.1 kg
Body: Aluminum

Audio, power & networking
Key features
Easy installation, Audio Microphone array (4x microphones)
360° fisheye panoramic configuration, and
with IR management Power Source PoE+ (802.3at Type 2)
For installation only: USB-C (1.5A mode)
AI video analytics for
Cloud-native deployment loitering, anomalies Typical: 5 W
and more Power Consumption Max without heater: 13 W
Max with heater: 23 W
On-board storage¹
12 MP image sensor and processing IPv4, HTTPS, TLS, DNS, mDNS, DNS-SD, NTP,
Networking Protocols RTSP, RTP, RTCP, ICMP, DHCP, ARP
Streaming: RTP/UDP, RTP/RTSP/HTTPS/TCP
802.3ab 10/100/1000 Gigabit Ethernet
Connection
USB-C for preview and setup
1 Available on most models

Page 21
