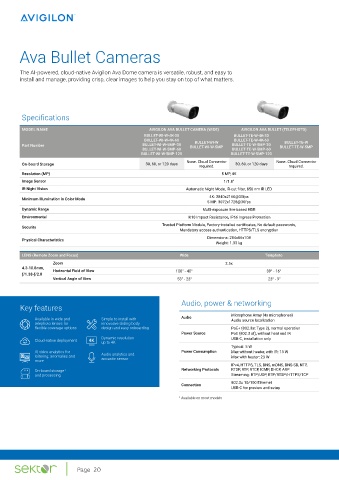

Page 20 - SEKTOR Product Catalog 2025

Ava Bullet Cameras

The AI-powered, cloud-native Avigilon Ava Dome camera is versatile, robust, and easy to
install and manage, providing crisp, clear images to help you stay on top of what matters.

Specifications

MODEL NAME AVIGILON AVA BULLET CAMERA (WIDE) AVIGILON AVA BULLET (TELEPHOTO)
BULLET-WI-W-4K-30 BULLET-TE-W-4K-30
BULLET-WI-W-4K-60 BULLET-WI-W BULLET-TE-W-4K-60 BULLET-TE-W
Part Number BULLET-WI-W-5MP-30 BULLET-WI-W-5MP BULLET-TE-W-5MP-30 BULLET-TE-W-5MP
BULLET-WI-W-5MP-60 BULLET-TE-W-5MP-60
BULLET-WI-W-5MP-120 BULLET-TE-W-5MP-120
None. Cloud Connector None. Cloud Connector
On-board Storage 30, 60, or 120 days required. 30, 60, or 120 days required.
Resolution (MP) 5 MP, 4K
Image Sensor 1/1.8”
IR Night Vision Automatic Night Mode, IR-cut filter, 850 nm IR LED
4K: 3840x2160@30fps
Minimum Illumination in Color Mode
5 MP: 3072x1728@30fps
Dynamic Range Multi-exposure line-based HDR
Environmental IK10 Impact Resistance, IP66 Ingress Protection
Trusted Platform Module, Factory-installed certificates, No default passwords,
Security
Mandatory access authentication, HTTPS/TLS encryption
Dimensions: 284x86x108
Physical Characteristics
Weight: 1.33 kg
LENS (Remote Zoom and Focus) Wide Telephoto
Zoom 2.5x
4.3-10.8mm, Horizontal Field of View 100° - 40° 39° - 16°
ƒ/1.38-ƒ/2.8
Vertical Angle of View 53° - 23° 23° - 9°

Audio, power & networking
Key features
Microphone Array (4x microphones)
Available in wide and Simple to install with Audio Audio source localization
telephoto lenses for innovative sliding body
flexible coverage options design and easy onboarding PoE+ (802.3at Type 2), normal operation
Power Source PoE (802.3 af), without heat and IR
Dynamic resolution USB-C, installation only
Cloud-native deployment up to 4K
Typical: 5 W
AI video analytics for Audio analytics and Power Consumption Max without heater, with IR: 13 W
loitering, anomalies and Max with heater: 23 W
more acoustic sensor
IPv4, HTTPS, TLS, DNS, mDNS, DNS-SD, NTP,
On-board storage¹ Networking Protocols RTSP, RTP, RTCP, ICMP, DHCP, ARP
and processing Streaming: RTP/UDP, RTP/RTSP/HTTPS/TCP
802.3u 10/100 Ethernet
Connection
USB-C for preview and setup
1 Available on most models

Page 20
