Page 1010 - 2006 HARLEY FLSTCI SERVICE MANUAL
P. 1010

7-5



                                              Locknut (2) @ 80-120 in-lbs (9.0-13.6 Nm)
                        1                                                                                                                                        2006 Softail: Transmission

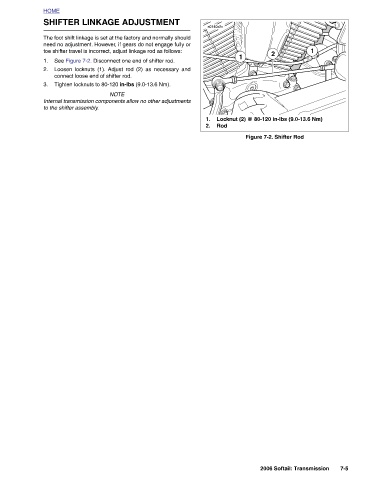

                         2                          Figure 7-2. Shifter Rod





                          1


               s0140x2x                       1.  Rod  2.




                   The foot shift linkage is set at the factory and normally should
                             Loosen locknuts (1). Adjust rod (2) as necessary and
                     need no adjustment. However, if gears do not engage fully or
                       toe shifter travel is incorrect, adjust linkage rod as follows:
              SHIFTER LINKAGE ADJUSTMENT
                           See Figure 7-2. Disconnect one end of shifter rod.






                                connect loose end of shifter rod. Tighten locknuts to 80-120 in-lbs (9.0-13.6 Nm).  NOTE Internal transmission components allow no other adjustments













          HOME             1.  2.  3.     to the shifter assembly.
