7.3             4            5


                                               6             7



                                                                           Neutral indicator switch and O-ring

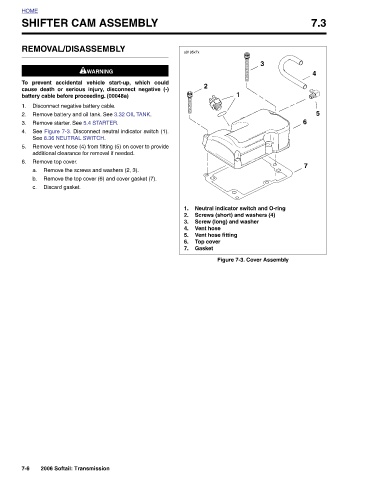

                            3                                                               Figure 7-3. Cover Assembly



                                      1                                       Screws (short) and washers (4) Screw (long) and washer





                                   2                                              Vent hose   Vent hose fitting  Top cover  Gasket
                        s0195x7x                                           1.  2.  3.  4.  5.  6.  7.






               Y
               SHIFTER CAM ASSEMBL




                       REMOVAL/DISASSEMBLY  1WARNING 1WARNING prevent accidental vehicle start-up, which could cause death or serious injury, disconnect negative (-) battery cable before proceeding. (00048a) Disconnect negative battery cable. Remove battery and oil tank. See 3.32 OIL TANK. Remove starter. See 5.4 STARTER. See Figure 7-3. Disconnect neutral indicator switch (1). See 8.36 NEUTRAL SWITCH. Remove vent hose (4) from fitting (5) on cover to provide additional clearance for removal if needed.   Remove top cover. Remove the screws and washers (2, 3).  Remove the top cover (6) and cover gasket (7).  gasket.  Discard  2006 Softail: Transmission
















          HOME                    To      1.  2.  3.  4.  5.  6.  a.   b.   c.                                                                                   7-6
