7-11 2006 Softail: Transmission









                                                                           3

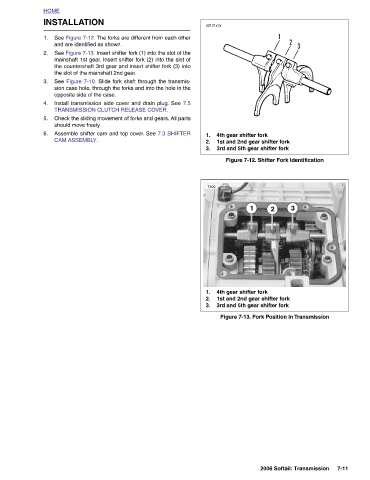

                                                   4th gear shifter fork 1st and 2nd gear shifter fork 3rd and 5th gear shifter fork Figure 7-12. Shifter Fork Identification  1  2  4th gear shifter fork 1st and 2nd gear shifter fork 3rd and 5th gear shifter fork Figure 7-13. Fork Position In Transmission








               d0121x7x                            1.  2.  3.       7409                               1.  2.  3.
















                   See Figure 7-12. The forks are different from each other See Figure 7-13. Insert shifter fork (1) into the slot of the mainshaft 1st gear. Insert shifter fork (2) into the slot of the countershaft 3rd gear and insert shifter fork (3) into See Figure 7-10. Slide fork shaft through the transmis- sion case hole, through the forks and into the hole in the Install transmission side cover and drain plug. See  7.5 TRANSMISSION CLUTCH RELEASE COVER. Check the sliding movement of forks and gears. All parts Assemble shifter cam and top cover. See 7.3 SHIFTER




              INSTALLATION  and are identified as shown.  the slot of the mainshaft 2nd gear.  opposite side of the case.  should move freely.  CAM ASSEMBLY.
