Page 1014 - 2006 HARLEY FLSTCI SERVICE MANUAL
P. 1014

7-9










                                           2                                                                                                                     2006 Softail: Transmission
                     1

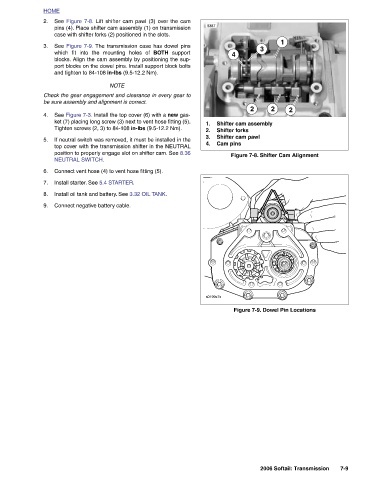

                                           2              Figure 7-8. Shifter Cam Alignment                  Figure 7-9. Dowel Pin Locations
                                               Shifter cam assembly
                       3

                                           2

                         4                        Shifter forks  Shifter cam pawl  Cam pins


               8387                            1.  2.  3.  4.                                           s0199x7x



                        support
                pins (4). Place shifter cam assembly (1) on transmission
              See  Figure 7-8.  Lift shifter cam pawl (3) over the cam

                  case with shifter forks (2) positioned in the slots.
                        BOTH
                        which fit into the mounting holes of  See Figure 7-9. The transmission case has dowel pins blocks. Align the cam assembly by positioning the sup- port blocks on the dowel pins. Install support block bolts and tighten to 84-108 in-lbs (9.5-12.2 Nm).  NOTE Check the gear engagement and clearance in every gear to be sure assembly and alignment is correct. See Figure 7-3. Install the top cover (6) with a new gas- ket (7) placing long screw (3) next to vent hose fitting (5). Tighten screws (2, 3) to 84-108 in-lbs (9.5-12.2 Nm).  If neutral switch was removed, it must be installed in the top cover with the transmission shifter in the NEUTRAL positi














                                                           NEUTRAL SWITCH.


          HOME  2.    3.                     4.      5.        6.  7.  8.  9.
