9-19

3
4 2006 Softail: Fuel Injection

Idle cable barrel Throttle cable barrel Throttle wheel

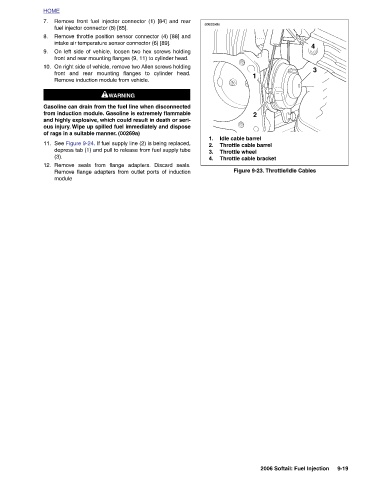

1 2 Throttle cable bracket Figure 9-23. Throttle/Idle Cables

s0633x9x 1. 2. 3. 4.

Remove front fuel injector connector (1) [84] and rear

fuel injector connector (8) [85]. Remove throttle position sensor connector (4) [88] and intake air temperature sensor connector (6) [89]. On left side of vehicle, loosen two hex screws holding front and rear mounting flanges (9, 11) to cylinder head. On right side of vehicle, remove two Allen screws holding front and rear mounting flanges to cylinder head. Remove induction module from vehicle. 1WARNING 1WARNING Gasoline can drain from the fuel line when disconnected from induction module. Gasoline is extremely flammable and highly explosive, which could result in death or seri- ous injury. Wipe up spilled fuel immediately and dispose of rags in a su

HOME 7. 8. 9. 10. 11. (3). 12. module
