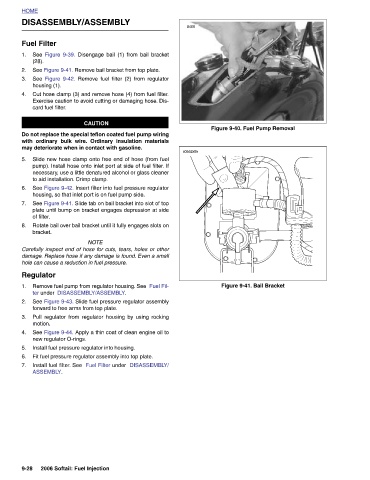

Page 1155 - 2006 HARLEY FLSTCI SERVICE MANUAL

Figure 9-40. Fuel Pump Removal Figure 9-41. Bail Bracket

8409 s0552x9x

See Figure 9-39. Disengage bail (1) from bail bracket
See Figure 9-42. Remove fuel filter (2) from regulator
Exercise caution to avoid cutting or damaging hose. Dis-
Cut hose clamp (3) and remove hose (4) from fuel filter.
See Figure 9-41. Remove bail bracket from top plate.

DISASSEMBLY/ASSEMBLY

CAUTION Do not replace the special teflon coated fuel pump wiring with ordinary bulk wire. Ordinary insulation materials may deteriorate when in contact with gasoline. Slide new hose clamp onto free end of hose (from fuel pump). Install hose onto inlet port at side of fuel filter. If necessary, use a little denatured alcohol or glass cleaner to aid installation. Crimp clamp. See Figure 9-42. Insert filter into fuel pressure regulator housing, so that inlet port is on fuel pump side. See Figure 9-41. Slide tab on bail bracket into slot of top plate until bump on bracket engages depression at side Rotate bail over bail bra

Fuel Filter (28). housing (1). card fuel filter. of filter. bracket. Regulator motion. new regulator O-rings. ASSEMBLY.
