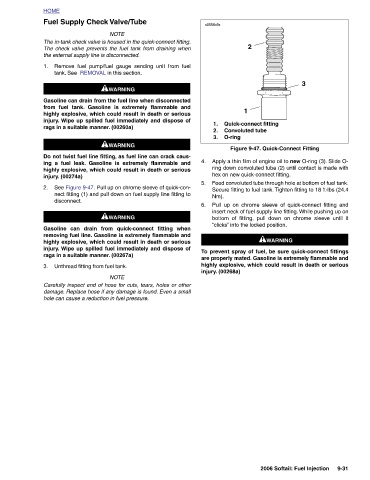

Page 1158 - 2006 HARLEY FLSTCI SERVICE MANUAL

9-31

3 Apply a thin film of engine oil to new O-ring (3). Slide O- ring down convoluted tube (2) until contact is made with Feed convoluted tube through hole at bottom of fuel tank. Secure fitting to fuel tank. Tighten fitting to 18 ft-lbs (24.4 Pull up on chrome sleeve of quick-connect fitting and insert neck of fuel supply line fitting. While pushing up on bottom of fitting, pull down on chrome sleeve until it 2006 Softail: Fuel Injection

Quick-connect fitting Figure 9-47. Quick-Connect Fitting hex on new quick-connect fitting. 1WARNING 1WARNING To prevent spray of fuel, be sure quick-connect fittings are properly mated. Gasoline is extremely flammable and highly explosive, which could result in death or serious

2 “clicks” into the locked position.
1 Convoluted tube O-ring

s0556x9x 1. 2. 3. Nm). injury. (00268a)

4. 5. 6.

Fuel Supply Check Valve/Tube NOTE The in-tank check valve is housed in the quick-connect fitting. The check valve prevents the fuel tank from draining when the external supply line is disconnected. Remove fuel pump/fuel gauge sending unit from fuel tank. See REMOVAL in this section. 1WARNING 1WARNING Gasoline can drain from the fuel line when disconnected from fuel tank. Gasoline is extremely flammable and highly explosive, which could result in death or serious injury. Wipe up spilled fuel immediately and dispose of rags in a suitable manner. (00260a) 1WARNING 1WARNING Do not twist fuel line fitting, as fuel line can crack caus- ing a fuel leak. G

HOME 1. injury. (00274a) 2. disconnect. 3.
