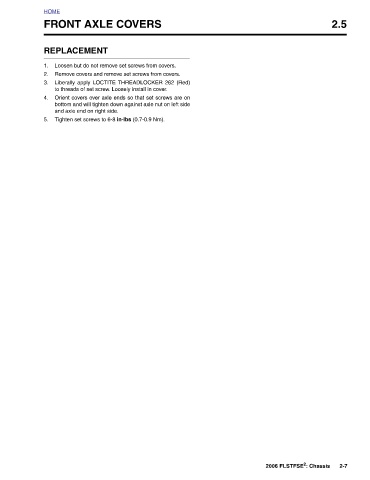

Page 1182 - 2006 HARLEY FLSTCI SERVICE MANUAL
P. 1182

2.5                                                                                                                                       2-7

                                                                                                                                                        2006 FLSTFSE 2 : Chassis









































              FRONT AXLE COVERS  Loosen but do not remove set screws from covers.  Remove covers and remove set screws from covers. Liberally apply LOCTITE THREADLOCKER 262 (Red) to threads of set screw. Loosely install in cover. Orient covers over axle ends so that set screws are on bottom and will tighten down against axle nut on left side Tighten set screws to 6-8 in-lbs (0.7-0.9 Nm).
                      REPLACEMENT        and axle end on right side.







          HOME             1.  2.  3.  4.   5.
