Page 1227 - 2006 HARLEY FLSTCI SERVICE MANUAL

1
3 4
Valve seal installation tool

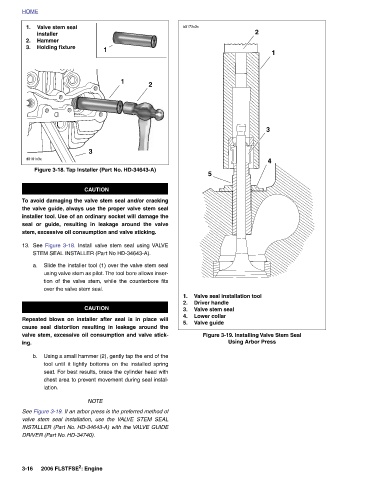

2 Figure 3-19. Installing Valve Stem Seal Using Arbor Press

5 Driver handle Valve stem seal Lower collar Valve guide

b0172x3x 1. 2. 3. 4. 5.

Figure 3-18. Tap Installer (Part No. HD-34643-A)
2

1

CAUTION To avoid damaging the valve stem seal and/or cracking the valve guide, always use the proper valve stem seal installer tool. Use of an ordinary socket will damage the seal or guide, resulting in leakage around the valve See Figure 3-18. Install valve stem seal using VALVE CAUTION Repeated blows on installer after seal is in place will cause seal distortion resulting in leakage around the valve stem, excessive oil consumption and valve stick- NOTE See Figure 3-19. If an arbor press is the preferred method of valve stem seal installation, use the VALVE STEM SEAL INSTALLER (Part No. HD-346
1 Slide the installer tool (1) over the valve stem seal using valve stem as pilot. The tool bore allows inser- tion of the valve stem, while the counterbore fits Using a small hammer (2), gently tap the end of the tool until it lightly bottoms on the installed spring seat. For best results, brace the cylinder head with chest area to prevent movement during seal instal-
3 stem, excessive oil consumption and valve sticking. STEM SEAL INSTALLER (Part No HD-34643-A).
Valve stem seal installer Hammer Holding fixture over the valve stem seal. lation. DRIVER (Part No. HD-34740). 2006 FLSTFSE 2 : Engine

HOME 1. 2. 3. d0181x3x 13. a. ing. b. 3-16
