6796 NO Repair open between lamps and TSM/TSSM connector [30]. 6798
NO Replace bulbs as necessary.
WILL NOT FLASH, 4-WAY FLASHERS INOPERABLE: DTC B1121, B1122, B1141
NO Check for continuity between cavity 6 of Breakout Box and lamps (front and rear). Conti- nuity present? YES Repair open ground circuit. 6797
Continued from Turn Signal Error 2A or Turn Signal Error 2D. Inspect bulbs on side that will not flash. Are the bulbs OK? NO Check for continuity between cavity 5 of Breakout Box and lamps (front and rear). Continuity present? NO Repair open between lamps and TSM/TSSM connector [30]. 6800
6

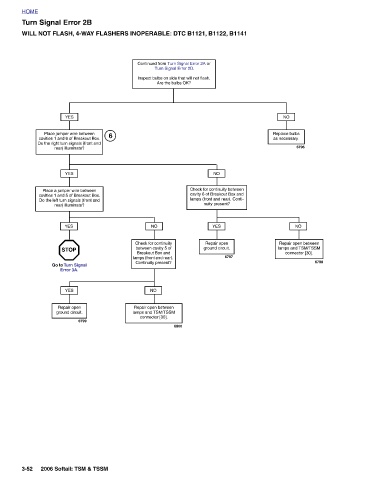

Turn Signal Error 2B YES Place jumper wire between cavities 1 and 6 of Breakout Box. Do the right turn signals (front and rear) illuminate? YES Place a jumper wire between cavities 1 and 5 of Breakout Box. Do the left turn signals (front and rear) illuminate? YES STOP Go to Turn Signal Error 3A. YES Repair open ground circuit. 6799 2006 Softail: TSM & TSSM
